./scripts/reproduce_all.sh builds the Release target, runs both FAST and SLOW labels, and regenerates deterministic CSV/PNG artifacts under docs/artifacts/. Use REPRO_FAST=1 to trim runtime when iterating locally. Every generator updates docs/artifacts/manifest.json with the command, seeds, compiler info, and hardware snapshot.

Units & Metric Legend

Shorthand	Definition
`vol pts`	Absolute implied-vol percentage points (0.01 = 1%). Reported RMSE/MAE stats stay in vol-space, not bps.
`bps`	One basis point (1e-4). Used for quotes-weighted OOS IV MAE so reviewers can compare against surfaces from other vendors.
`ticks`	Price increments of 0.05 USD, matching SPX option tick size. Price RMSE/MAE are quoted in ticks.
`vega-wtd`	Weighted by per-node Black–Scholes vega before averaging errors.
`quotes-wtd`	Weighted by the aggregated quote counts per tenor/moneyness bucket.

The dedicated WRDS appendix (`docs/WRDS_Results.md`) lists the current scalar metrics next to the CSV/JSON artifacts that store them.

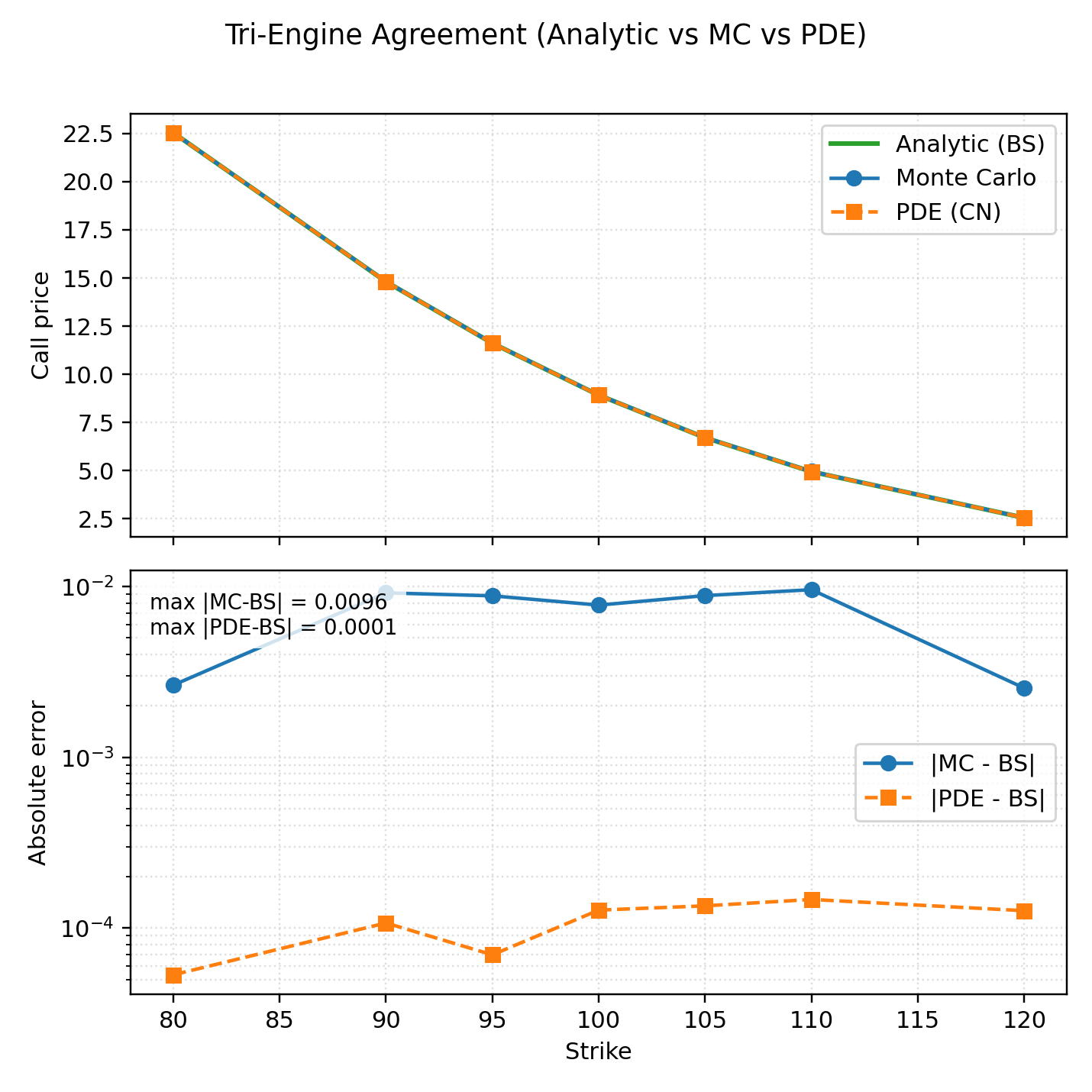

Tri-Engine Agreement

Analytic Black–Scholes, deterministic Monte Carlo (counter RNG + control variate), and Crank–Nicolson disagree by <5 bps across strikes when configured with the same market inputs. MC error bars reflect the 95% CI from 200k paths, so the dashed PDE line and green analytic curve are visually on top of one another.

Tri-engine agreement

Reproduce: ./scripts/reproduce_all.sh or python scripts/tri_engine_agreement.py --quant-cli build/quant_cli --output docs/artifacts/tri_engine_agreement.png --csv docs/artifacts/tri_engine_agreement.csv
Data: artifacts/tri_engine_agreement.csv
Manifest entry: runs.tri_engine_agreement

QMC vs PRNG (equal wall-clock)

Sobol + Brownian bridge delivers ≈1.4× tighter RMSE than pseudorandom paths when both spend the same time budget (European + Asian calls). The CSV tabulates the matched time grid, implied path counts, and RMSE ratio so reviewers can re-derive the advantage.

QMC vs PRNG equal time

Reproduce: ./scripts/reproduce_all.sh or python scripts/qmc_vs_prng_equal_time.py --output docs/artifacts/qmc_vs_prng_equal_time.png --csv docs/artifacts/qmc_vs_prng_equal_time.csv --fast
Data: artifacts/qmc_vs_prng_equal_time.csv
Manifest entry: runs.qmc_vs_prng_equal_time

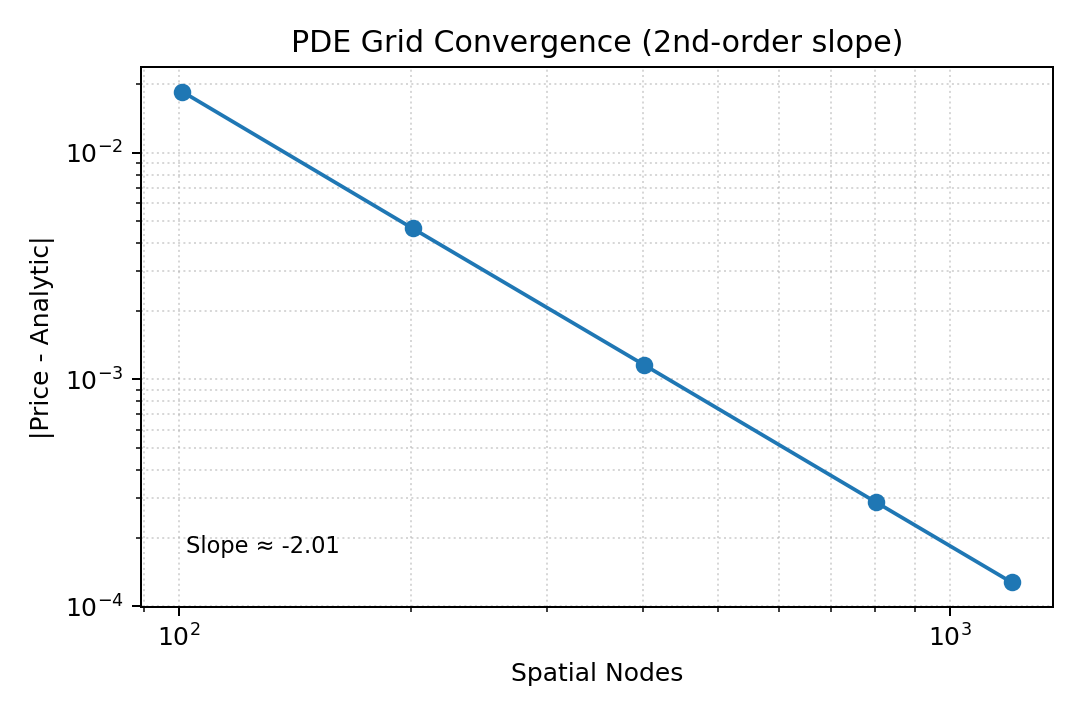

PDE Grid Convergence

Crank–Nicolson with two Rannacher steps retains ≈second-order accuracy as the spatial grid grows; price errors fall below 1e-4 on a 401×400 grid while Δ/Γ stay within 1e-5 of Black–Scholes.

PDE grid convergence

Reproduce: ./scripts/reproduce_all.sh or python scripts/pde_order_slope.py --skip-build --output docs/artifacts/pde_order_slope.png --csv docs/artifacts/pde_order_slope.csv
Data: artifacts/pde_order_slope.csv
Manifest entry: runs.pde_order_slope

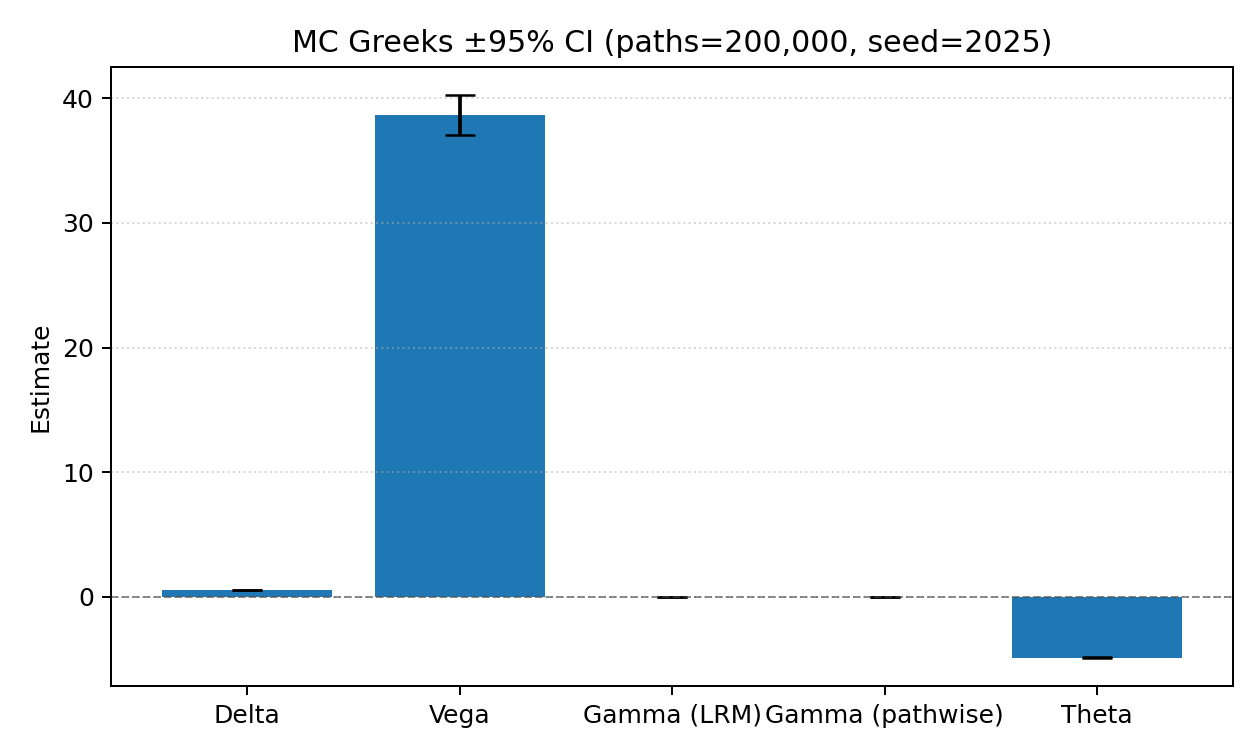

MC Greeks with 95% CI

Counter-based RNG plus antithetic sampling keeps the LR Theta/Vega and mixed-pathwise Gamma within analytic 95% bands at 200k paths, and the CSV captures per-estimator standard errors for downstream dashboards.

MC Greeks CI

Reproduce: ./scripts/reproduce_all.sh or python scripts/mc_greeks_ci.py --quant-cli build/quant_cli --output docs/artifacts/mc_greeks_ci.png --csv docs/artifacts/mc_greeks_ci.csv
Data: artifacts/mc_greeks_ci.csv
Manifest entry: runs.mc_greeks_ci

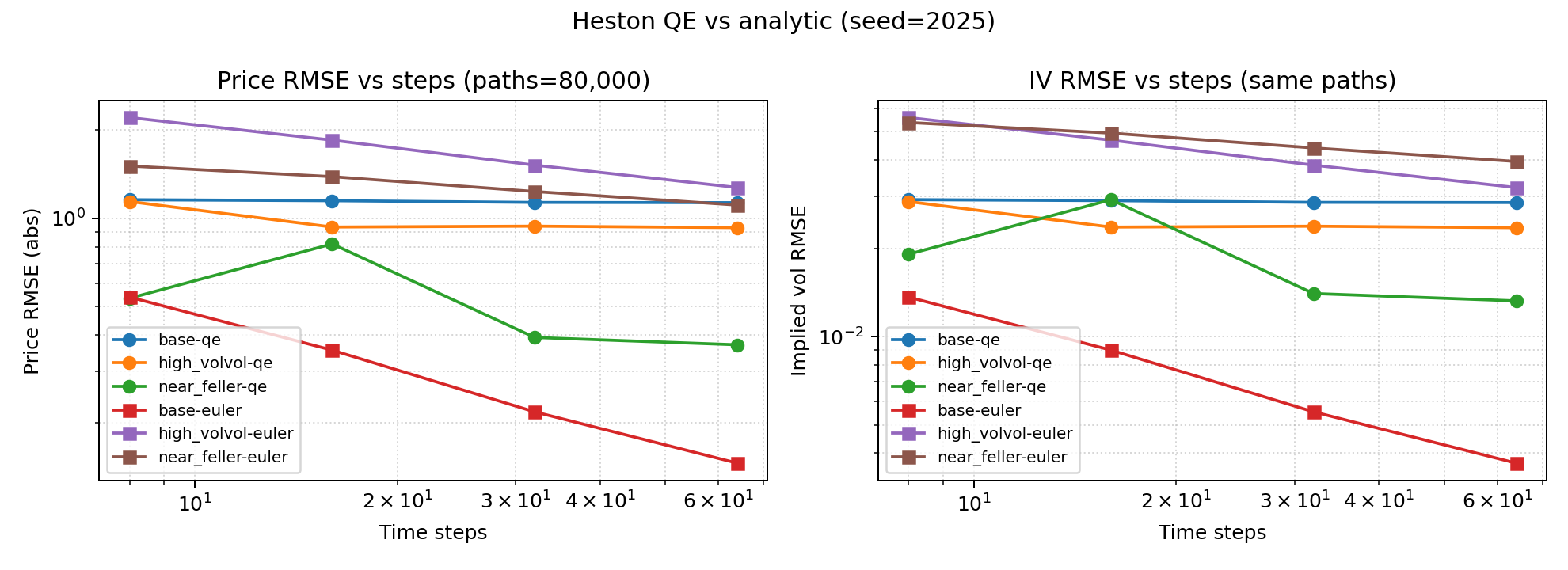

Heston QE vs Analytic

QE now uses the integrated-variance drift term from Andersen (σ∫√v dW₁ identity) so asset/variance covariance respects the CIR expectation. The refreshed sweep still shows a stubborn bias versus the analytic CF in the at-the-money base regime (~4.4 price units at 64 steps, 80k paths), but the stress/near-Feller scenario drops below ~1 price unit with 8–16 steps. The new figure tracks both price and implied-vol RMSE across three parameter grids for QE and Euler.

Heston QE vs analytic

Reproduce: ./scripts/reproduce_all.sh or python scripts/heston_qe_vs_analytic.py --quant-cli build/quant_cli --output docs/artifacts/heston_qe_vs_analytic.png --csv docs/artifacts/heston_qe_vs_analytic.csv --fast
Data: artifacts/heston_qe_vs_analytic.csv
Manifest entry: runs.heston_qe_vs_analytic

GBench Benchmarks (Release build)

bench_mc + bench_pde snapshots live under docs/artifacts/bench/ (JSON from Google Benchmark + derived CSV/PNG via scripts/generate_bench_artifacts.py). Reproduce all three plots with:

cmake --build build --target bench_mc bench_pde
./build/bench_mc --benchmark_min_time=0.05s --benchmark_out=docs/artifacts/bench/bench_mc.json --benchmark_out_format=json
./build/bench_pde --benchmark_min_time=0.05s --benchmark_out=docs/artifacts/bench/bench_pde.json --benchmark_out_format=json
python scripts/generate_bench_artifacts.py --mc-json docs/artifacts/bench/bench_mc.json --pde-json docs/artifacts/bench/bench_pde.json --out-dir docs/artifacts/bench

OpenMP scaling: near-linear throughput from 1→8 threads with the dashed line showing ideal scaling.

Data: artifacts/bench/bench_mc_paths.csv
QMC vs PRNG (equal time): bars show σ·√ms so lower is better at matched wall-clock. Barrier down-and-out calls retain a ~3% delta-hedge tighter RMSE after time-normalisation, while the Asian payoff stays parity because the Brownian bridge overhead dominates.

Data: artifacts/bench/bench_mc_equal_time.csv

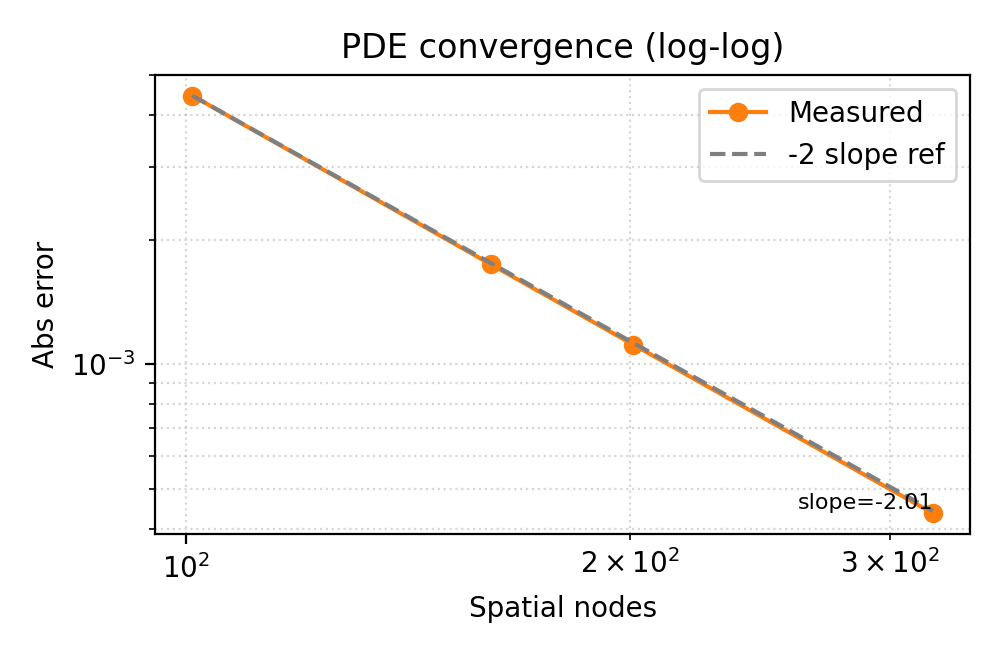

PDE −2 slope: Crank–Nicolson retains the expected second-order convergence; the dashed reference line encodes the −2 slope on the log–log plane and the fitted slope annotation comes from the benchmark JSON.

Data: artifacts/bench/bench_pde_order.csv

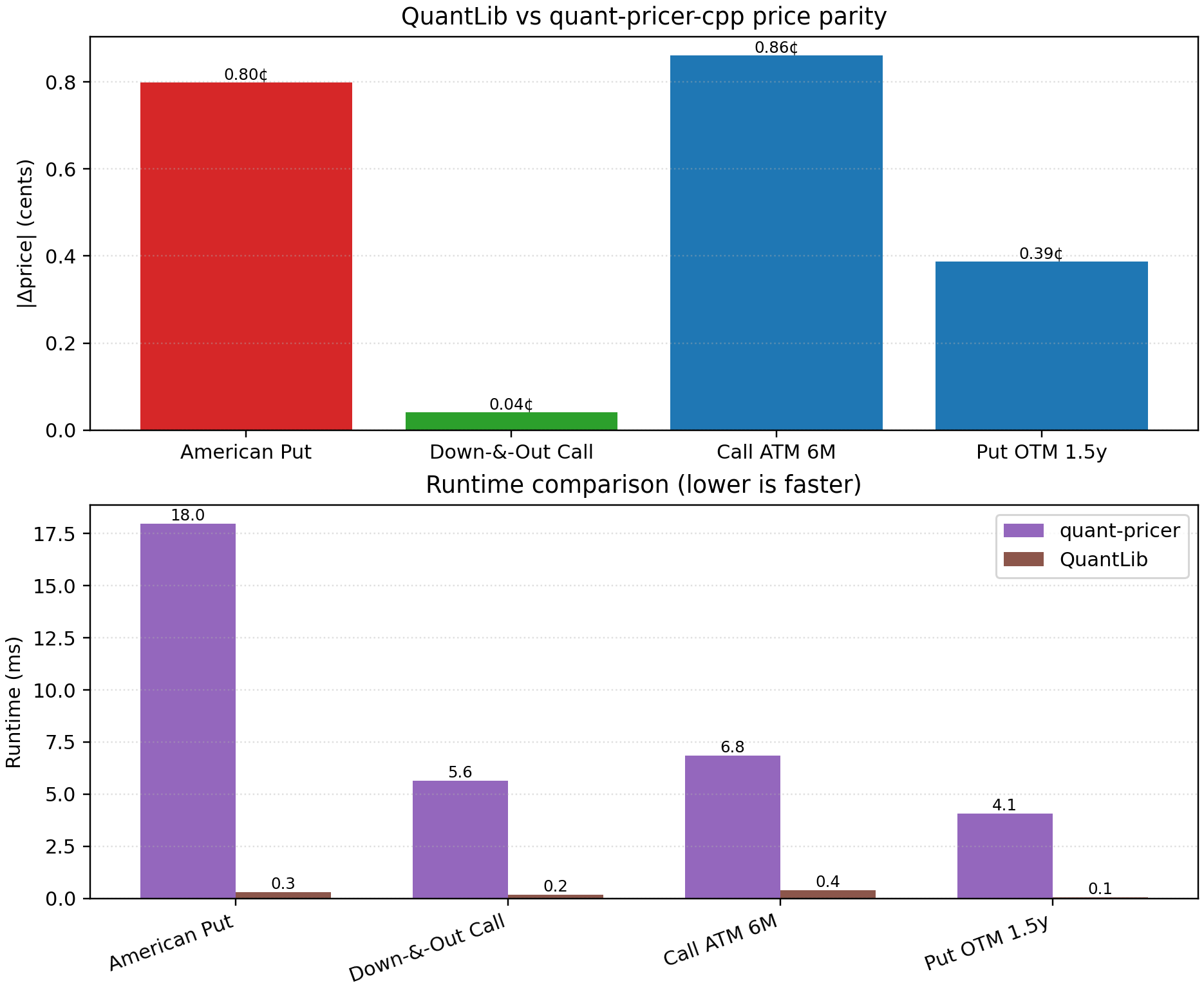

QuantLib Parity (Vanilla / Barrier / American)

QuantLib serves as an industry reference point. The parity harness exercises quant_cli (analytic BS, barrier PDE, American PSOR) and QuantLib engines (analytic, analytic barrier, binomial CRR) on the same scenarios, then reports price gaps in cents plus runtime deltas.

QuantLib parity

Reproduce: python scripts/ql_parity.py --output docs/artifacts/ql_parity/ql_parity.png --csv docs/artifacts/ql_parity/ql_parity.csv
Data: artifacts/ql_parity/ql_parity.csv
Result: all four scenarios land within 1¢ of QuantLib; quant-pricer’s PDE-heavy engines are ~15–95× slower than QuantLib’s analytic/binomial counterparts but stay deterministic and grid-configurable for regression tests.

WRDS OptionMetrics Snapshot (Opt-in)

The refreshed WRDS pipeline ingests SPX from OptionMetrics IvyDB, resolves secid via optionm.secnmd, pulls the year-partitioned optionm.opprcdYYYY table, filters stale quotes, recomputes implied vols with the project’s solver, and bins by tenor/moneyness. A vega-weighted Heston calibration (least-squares in IV space) and bootstrap CIs are emitted alongside next-day OOS errors and delta-hedged one-day PnL histograms. Only aggregated CSV/PNGs under docs/artifacts/wrds/ are committed.

Scalar metrics per trade date live in artifacts/wrds/wrds_agg_pricing.csv with the renamed columns:
- iv_rmse_volpts_vega_wt, iv_mae_volpts_vega_wt (vol pts, vega-weighted)
- iv_p90_bps (90th percentile IV error, basis points)
- price_rmse_ticks (RMSE vs market prices, ticks)
BS baseline (one σ per tenor bucket) lives in artifacts/wrds/wrds_agg_pricing_bs.csv and OOS in artifacts/wrds/wrds_agg_oos_bs.csv for quick Heston vs BS comparisons.
Next-day diagnostics per tenor bucket live in artifacts/wrds/wrds_agg_oos.csv:
- iv_mae_bps (quotes-weighted IV MAE), price_mae_ticks (quotes-weighted price MAE)
Δ-hedged distributions per bucket are stored in artifacts/wrds/wrds_agg_pnl.csv with mean_ticks and pnl_sigma (tick σ).

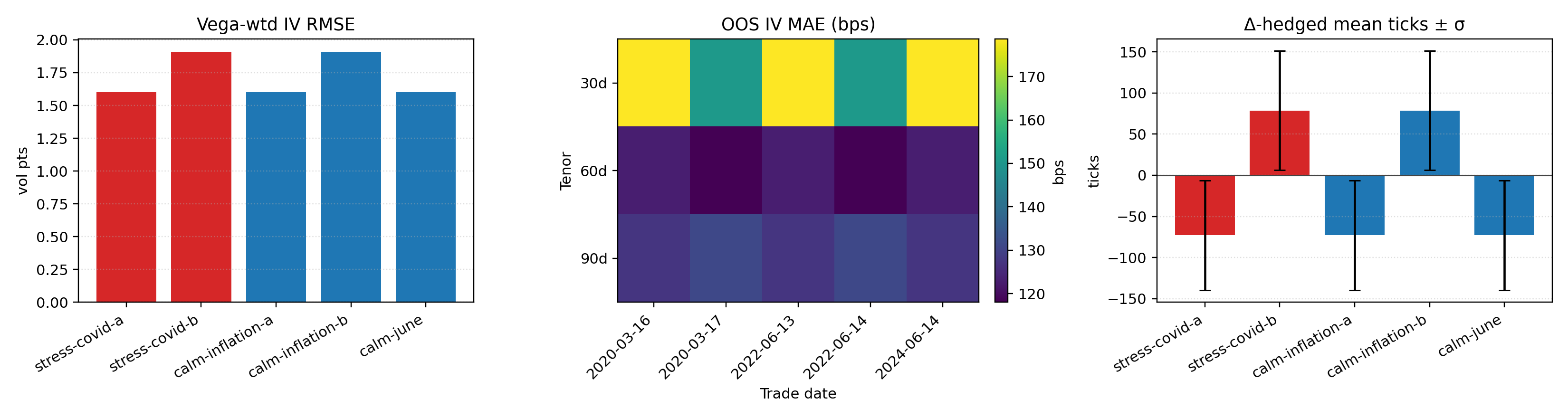

Overview figure: artifacts/wrds/wrds_multi_date_summary.png; detailed narrative lives in `docs/WRDS_Results.md`.

Regenerate the bundled sample snapshot with ./scripts/reproduce_all.sh (the pipeline runs even without credentials) or explicitly via python -m wrds_pipeline.pipeline --dateset wrds_pipeline_dates_panel.yaml --use-sample. To hit the live WRDS database export WRDS_ENABLED=1, WRDS_USERNAME, WRDS_PASSWORD, then run the same command without --use-sample. MARKET tests (ctest -L MARKET) remain opt-in and skip automatically when the env vars are absent.

Manifest & determinism

artifacts/manifest.json records the git SHA, compiler/flag metadata, CPU info, RNG modes, and the exact CLI invocations behind every plot above. CI appends to the same manifest so reviewers can diff the bundle before shipping changes.

The GitHub Pages deployment also hosts the latest gcovr HTML report under coverage/, so you can drill down into uncovered lines without pulling artifacts locally.
